Insulation: 90°C-rated XLPE (Type Rw90), moisture-resistant

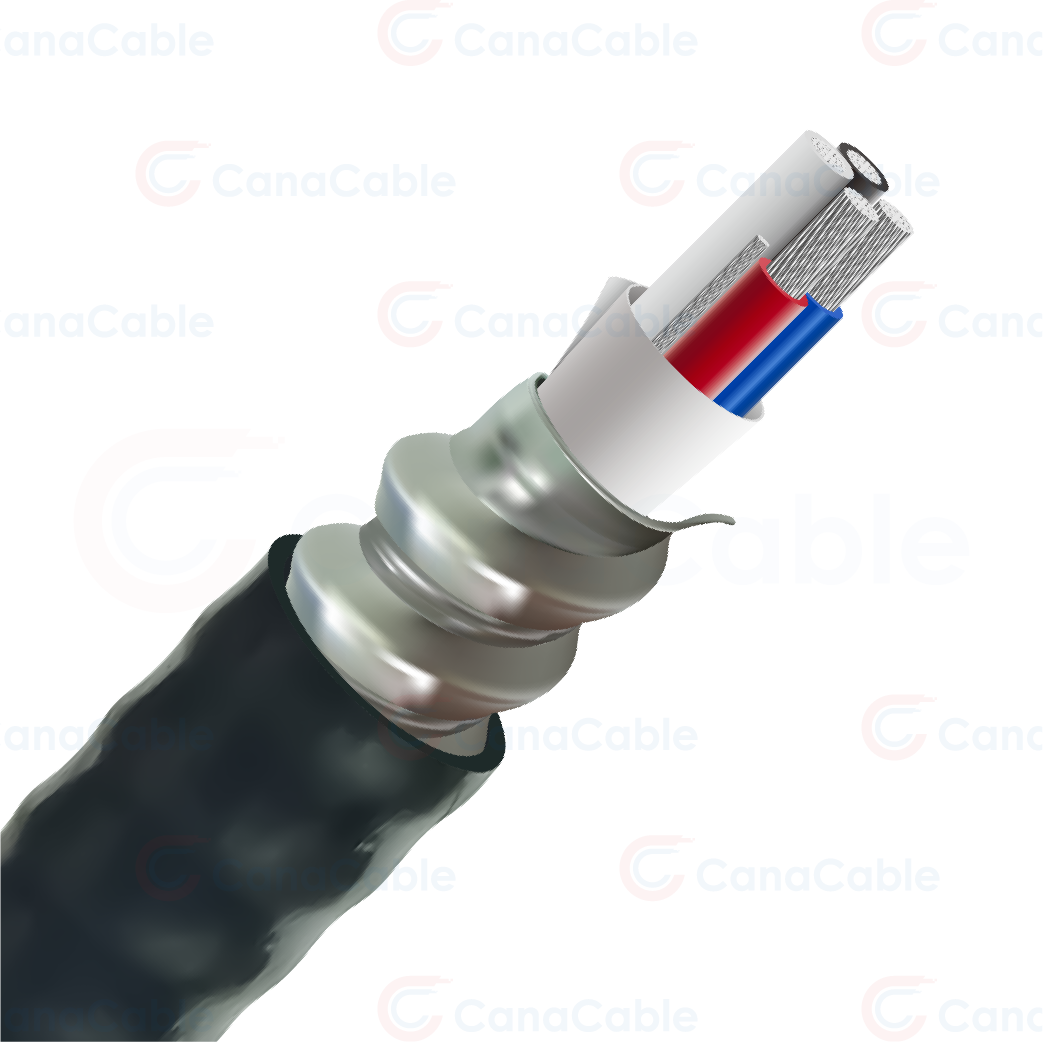

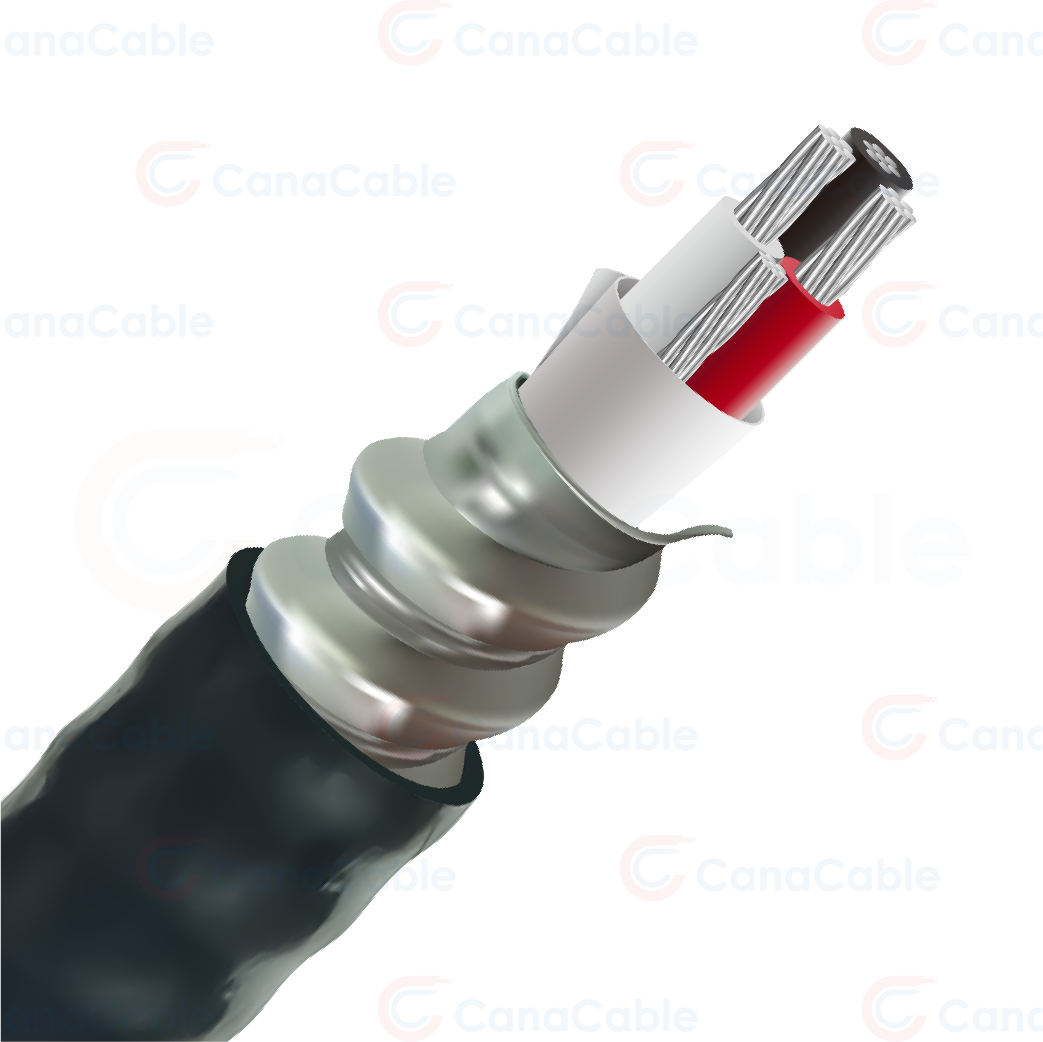

Armor: Interlocked aluminum armor
Jacket: UV-resistant PVC (NEMA 4X equivalent for wet locations)
Grounding: Bare aluminum bonding conductor (CSA C22.2 No. 51 compliant)
Color Coding: Black, White, Red, Blue (phase identification per CEC Section 4-032)
File Listing No.: 300938
Applications:
For exposed or concealed wiring in dry, damp or wet locations, sunlight resistant and suitable for direct earth burial and concrete encasement.
Interlocked aluminum armor, 600V, 90°C XLPE insulation.
Approved for cable tray, aerial messenger, service entrance and hazardous locations (with certified fittings).
Minimum installation temperature -40°C.
Standards Compliance：
CSA Standard C22.2 No. 51
CSA Standard C22.2 No. 38
CSA C22.2 No. 174
(Hazardous Location Cables & Glands)
CSA Standard C22.2 No. 2556
FT4 Rating
RoHS compliant
